Board

Napredujte z našimi idejami

CPU-Boards so kombinacija mikroprocesorja, SoM ali alternativno modula Compute Module Raspberry Pi, pomnilnika, komunikacijskih in LCD-vmesnikov ter pomembnih varnostnih standardov – vse na kompaktnem tiskanem vezju. Funkcije za Boards lahko prilagodite z razširitvenimi priključki. Ta zmogljiva in neodvisna platforma je vsestransko uporabna in predstavlja varno investicijo za vaše prihodnje projekte.





  • Manj vloženega truda za razvoj

    Standardni komplet perifernih naprav z različnimi vmesniki in računsko zmogljivostjo ter razširitvijo pomnilnika je mogoče prilagoditi po meri.





  • Brez režijskih stroškov

    Kombinacija zmogljivega, kompaktnega računskega jedra na modulu SoM in najnovejši komunikacijski vmesniki na Board prinašajo učinkovito rešitev za najrazličnejše vrste uporabe.





  • Prilagodljiva računska zmogljivost

    CPU lahko izberete glede na potrebe, kar se tiče zmogljivosti posameznega procesorja in ustrezne konfiguracije pomnilnika.





  • Vnaprej konfigurirana dobava

    Na željo vključimo Bootloader, operacijski sistem, vnaprej določeno uporabo in naslove MAC.





  • Najnovejša tehnologija šifriranja

    Secure-Boot in druge varnostne funkcije ustrezajo najvišjim zahtevam glede varnosti.





  • Razpoložljiva programska orodja

    Vnaprej konfigurirano razvojno okolje in prilagojen paket Linux Board Support Package omogočata hiter zagon razvoja aplikacije.





  • Vsestranska uporabnost

    Kombinacija System-on-Modul (SoM) in Board prinaša zmogljivo in neodvisno platformo.





  • FAQ

    Pogosta vprašanja

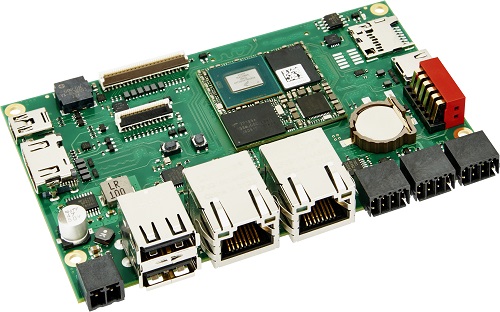

BL i.MX8M Plus

BL i.MX8M Plus

Baseboard for AI applications with 4k HDMI connection

  • NXP i.MX8M Plus, 4x Arm® Cortex®-A53 @1.6 GHz with Neural Processing Unit (NPU)
  • Dual Display Support (LVDS/HDMI 2.0a), Camera Support (4-lane CSI with PHY)
  • Dual Gigabit Ethernet, 1x USB 3.0 Type-C, 2x USB 2.0

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC Micro SD

Software

  • Embedded Linux (Yocto Distribution)

Technical Data

FunctionStandard LayoutOptions
Microprocessor
CPUNXP i.MX8M Plus, 4x Arm® Cortex®-A53 @1.6 GHz (1.8 GHz), 1x Arm® Cortex®-M7 @800 MHz, 2D GPU and 3D GPU, NPU (2.3 TOPS)
Memory SOM
LPDDR4-RAM4 GB1 GB...2 GB
eMMC32 GB4 GB...64 GB
Memory Baseboard
EEPROM8 kB (64 kb)
SD Card1x microSD Card Slot
nv Memory8 kB (64 kb) EERAM
Communication
Ethernet2x 1 Gbit/s
USB2x 2.0 Host, 1x 3.0 Type-C
DIO4x DIO (24 V / up to 800 mA)
Serial Interface1x RS232, 1x RS485
CAN1x CAN FD
Display/Touch
LCD Interface1x HDMI (up to 4Kp30), 1x LVDs (up to 1366x768p60)
Touch1x I2C, 1x USB
CAMERA
Camera Interface1x MIPI CSI (4-lane)
Software
Operating SystemEmbedded Linux (Yocto Distribution)
BootloaderU-Boot
Other
Power supply24 V DC ±20 %
Temperature range0 °C…+55 °C, ambient, non-condensing
Form factor105.5 x 67 mm (4.3”)
RTC 5ppm accuracy
RTC bufferingCR1220
Debug1x Console
Expansion ports1x SDIO (8-bit), 1x I2C, 1x SPI, 1x SAI, 1x PCIe, 1x USB, 1x MIPI-CSI, 1x UART
Audio1x Buzzer
Approval CE
Security

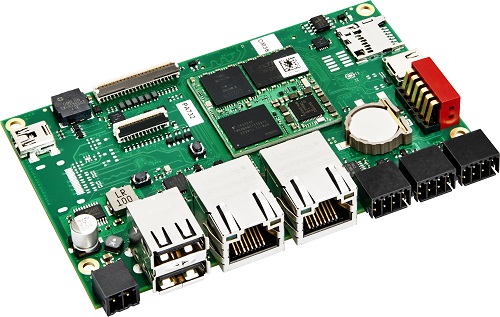

BL i.MX93

BL i.MX93

Powerful and cost-effective baseboard for machine learning

  • NXP i.MX93, 2x Arm® Cortex®-A55 @1.7 GHz
  • Display Support (LVDS), Camera Support (2-lane CSI)
  • Dual GbE, 1x USB 2.0 Type-C UFP, 2x USB 2.0

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)

Technical Data

FunctionStandard Layout SOLOOptions
Microprocessor
CPUNXP i.MX93, 2x Arm® Cortex®-A55 @1.7 GHz, 1x Arm® Cortex®-M33 @250 MHz, 1x Arm® Ethos™ U-65 microNPU
Memory SoM
LPDDR4-RAM2 GB512 MB - 1 GB
eMMC32 GB4 GB - 64 GB
Memory Baseboard
EEPROM8 kByte
SD-Card1x microSD Slot
nvMemory8 kByte EERAM
Communication
Ethernet2x 1 Gbit/s
USB2x USB 2.0 Host, 1x USB 2.0 Type-C UFP
DIO4x DIO (24 V/up to 800 mA)
Serial interface1x RS232, 1x RS485
CAN1x CAN FD
Display/Touch
LCD interface1x LVDS (up to 1366 x 768 @60 fps)
Touch1x I2C, 1x USB
Camera
Camera interface 1x MIPI CSI (2-lane)
Software
Operating systemEmbedded Linux (Yocto Distribution)
BootloaderU-Boot
Other
Power supply24 V DC ±20 %
Power consumptionTBD
Temperature range0 °C…+55 °C, ambient, non-condensing
Form factor105.5 x 67 mm (4.3”)
RTC1x RV-3028-C7
RTC bufferingCR 1220
Debug1x Console
Expansion plug1x SDIO (4-bit), 1x I2C, 1x SPI, 1x SAI, 1x USB, 1x UART
Audio1x Buzzer
ApprovalCE
Security
SecuritySecure Boot, RNG, Tamper Detection, Secure Storage, AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224, SHA-256, 16 kb, Secure RAM, tamper-resistant RTC, Secure Debug, OTP Space

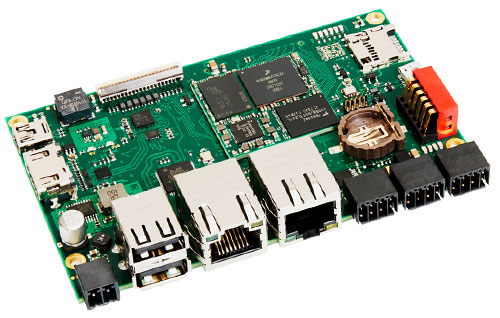

BL i.MX8M Mini

BL i.MX8M Mini

The Baseboard with high-performance-processor Quad Core 1.6 GHz

  • NXP i.MX8M Mini, 4x Arm® Cortex®-A53 @1.6 GHz
  • 1x Arm® Cortex®-M4 @400 MHz
  • 1 GB up to 4 GB LPDDR4-RAM

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)
  • Optional CODESYS® SoftSPS
  • arm SystemReady IR certified V1.0

Technical Data

FunctionStandard LayoutOptions
Microprocessor
CPUNXP i.MX8M Mini, 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU
Memory SoM Module
LPDDR4-RAM4 GB1 GB / 2 GB
NOR-Flash2 MB
Memory SoM Baseboard
eMMC32 GB4 GB / 64 GB
SD-Card1x microSD Card Slot
nv Memory8 kB (64kb) EERAM
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485
CAN1x CAN 2.0 B
Display/Touch
LCD Interface1x HDMI, 1x LVDS, up to 1920 x 1080 @60 fps
Touch1x I2C, 1x USB
Other
Power supply24 V DC ±20 %
Power consumptionLinux running < 3 W
Temperature range0 °C…+70 °C, ambient, non condensing
Operating systemEmbedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)
RTC5ppm accuracy
RTC bufferingCR1220
Debug1x Console
Expansion plug1x I2S, 1x PCIe, 1x SPI, 1x SDIO (8 Bit), 1x QSPI, 1x SAI, 1x USB, Camera interface 1x MIPI CSI (4-lane)
Audio1x Buzzer
SecurityHAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG

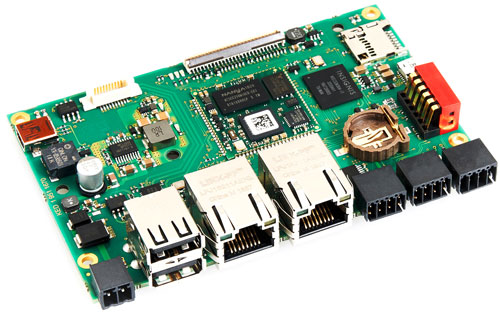

BL i.MX6 ULL/UL

BL i.MX6 ULL/UL

Complex application processor as simple as a micro-controller

  • NXP i.MX6 ULL 1x Arm® Cortex®-A7 @800 MHz
  • NXP i.MX6 UltraLight 1x Arm® Cortex®-A7 @528 MHz
  • 256 MB up to 512 MB DDR3-RAM

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)
  • Optional Codesys® SoftSPS

Technical Data

FunctionStandard Layout ULLStandard Layout ULOptions
Microprocessor
CPUNXP i.MX6 ULL 1x Arm® Cortex®-A7 @800 MHzNXP i.MX6 UltraLite 1x Arm® Cortex®-A7 @528 MHz
Memory SoM Module
DDR3-RAM512 MB512 MB256 MB
NAND-Flash512 MB512 MB256 MB
NOR-Flash1 MB1 MB
Memory SoM Baseboard
eMMC4 GB4 GB8 GB - 64 GB
SD-Card1x microSD Card Slot1x microSD Card Slot
nvMemory8 kByte nvSRAM8 kByte nvSRAM
Communication
Ethernet2x 10/100 Mbit/s2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS4851x RS232, 1x RS485
CAN1x CAN 2.0 B1x CAN 2.0 B
DIO2x DIO (24 V/up to 800 mA)2x DIO (24 V/up to 800 mA)
AIO2x AIN (0…24 V)2x AIN (0…24 V)
Display/Touch
LCD interface1x RGB 24 bit up to 1366 x 768 @60 fps1x RGB 24 bit up to 1366 x 768 @60 fps
Touch1x I2C, 1x USB1x I2C, 1x USB
Other
Power supply24 V DC ±20 %24 V DC ±20 %
Power consumptionLinux running <1.5 WLinux running <1.5 W
Temperature range0 °C…+70 °C, ambient, non condensing0 °C…+70 °C, ambient, non condensing
Operating systemEmbedded Linux (Yocto Distribution)Embedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)105.5 x 67 mm (4.3”)
RTC5 ppm accuracy5 ppm accuracy
RTC bufferingCR1220CR1220
Debug1x Console1x Console
Expansion plug2x USB, 1x I2C2x USB, 1x I2C1x SPI instead of nvSRAM
Audio1x Buzzer1x Buzzer
SecuritySecure Boot, RNG, AES-128Secure Boot, TRNG, Tamper Detection, Secure Storage (including 32 kb Secure RAM), Cryptographic Accelerators (AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224, SHA-256, RSA/ECDSA), Secure Debug, OTP Space
BL STM32 MP157

BL STM32 MP157

Tripple processor power for your project

  • STM32 MP157A, 2x Arm® Cortex®-A7 @650 MHz
  • 1x Arm® Cortex®-M4 @200 MHz
  • 256 MB up to 512 MB DDR3-RAM

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)

Technical Data

FunctionStandard LayoutOptions
Microprocessor
CPUSTM32MP157A 2x Arm® Cortex®-A7 @650 MHz, 1x Arm® Cortex®-M4 @200 MHz, 3D GPU
Memory SoM Modul
DDR3-RAM512 MB256 MB
NAND-Flash512 MB256 MB
NOR-Flash2 MB
Memory SoM Baseboard
eMMC4 GB8 GB - 64 GB
SD-Card1x microSD Card Slot
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN FD
DIO2x DIO (24 V/up to 800 mA)
AIO2x AIN (0...24 V)
Display/Touch
LCD Interface1x RGB 24 bit, 1x LVDS, 1x HDMI up to 1024 x 600 @60 fps
Touch1x I2C, 1x USB
Other
Power supply24 V DC ±20 %
Power consumptionLinux running < 2,5 W
Temperature range0 °C…+70 °C, ambient, non condensing
Operating system Embedded Linux (Yocto Distribution)
Form factor105.5 x 67 mm (4.3”)
RTC5 ppm accuracy
RTC bufferingCR1220
Debug1x Console
Audio1x Buzzer
SecurityTrustZone, SHA-256, MD5, HMAC, 3x Tamper Pins with 1 active, Secure RAMs, Secure Peripherals, Secure RTC, Analog true RNG, 98-bit unique ID
BL Pi-Tron CM5

BL Pi-Tron CM5

Raspberry Pi Compute Module 5 for demanding applications

  • Broadcom BCM2712,4x Arm® Cortex®-A76, 64-bit SoC @2.4 GHz
  • Up to 8 GB LPDDR4-RAM
  • Suitable for CODESYS® SoftPLC

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux (not preinstalled)
  • Optional CODESYS® SoftPLC

Technical Data

Function Standard-Equipment
Microprozessor
CPUBroadcom BCM2712, Quad Core Cortex®-A76, 64-bit SoC @2.4 GHz 4K @60 fps HEVC-Decoder OpenGL ES 3.1 graphics, Vulkan 1.2
Memory
LPDDR4-RAM2 GByte, optional 4 GByte/8 GByte
EMMC*16 GByte optional 32 GByte and 64 GByte
EEPROM4 kByte
SD Card1x microSD Card Slot for data
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG: only to program eMMC
I/Oup to 28x GPIO, 5x UART, 5x I²C, 5x SPI, 4x PWM, 1x SDIO, M.2 B-KEY 3042 (PCIe 1-lane Host, Gen 2 (5 Gbps)
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485 (Modbus-capable)
CAN1x CAN 2.0B/FD
WLAN/BLuetooth2.4 GHz/5.0 GHz IEEE 802.11b/g/n/ac wireless / BT 5.0, BL
Display/Touch
LCD/Camera-Interface1x MIPI 4-lane (DSI or CSI-2) 1x HDMI 2.0 (up to 4K @60 fps – HDMI-Socket) 1x HDMI 2.0 (up to 4K @60 fps – 40 pol. FFC)
Touchvia I²C or USB
Other
Power supply24 V DC ±20 %
Power consumptionTBD
Temperature rangeTBD
Operating system Raspbian, Linux (not preinstalled)
Form factor105.5 x 69.6 mm (4.3”)
External RTC1x on Baseboard
RTC BufferingCR2032
Debug1x Console
Expansion plug1x M.2 B-Key, Raspberry Pi GPIO-Header 40-Pin
ApprovalsCE
Sec
Hardware Möglichkeiten Compute Module 5Secure boot, hard disk encryption CM5 complies with strict EU regulations ETSI EN 303 645 and EN 18031 for Cyber security Standards, with documentation and support for the definition of levels of cybersecurity standards, as defined in ISO 14508
*bei Verwendung von eMMC Speichern ist das Booten über die SD-Karte nicht möglich

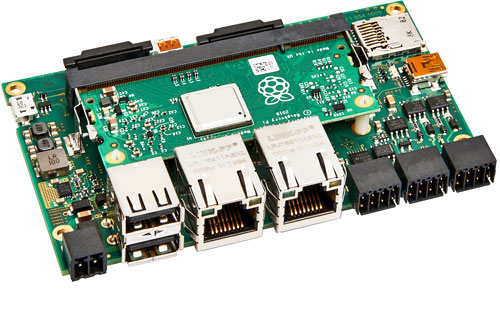

BL Pi-Tron CM4

BL Pi-Tron CM4

Compute Module 4 your performance boost

  • Broadcom BCM2711, 4x Arm® Cortex-A72, 64-bit SoC @1.5 GHz
  • Up to 8 GB LPDDR4-RAM
  • Suitable for CODESYS® SoftSPS

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux (not preinstalled)
  • Optional CODESYS® SoftPLC

Technical Data

FunctionStandard Equipment
Microprocessor
CPUBroadcom BCM2711, 4x Arm® Cortex®-A72, 64-bit SoC @1.5 GHz, H.265 (HEVC) up to 4Kp60 decode, H.264 up to 1080p decode, 1080p30 encode, OpenGL ES 3.1, Vulkan 1.0c
Memory
LPDDR4-RAM2 GByte optional 1 GByte, 4 GByte, 8 GByte
eMMC*16 GByte optional Lite/ 8 GByte/32 GByte (Lite: without eMMC only with microSD Card)
EEPROM4 kB
SD CardCM4 Lite: 1x microSD Card Slot for Operating System, CM4 8 GByte, 16 GByte, 32 GByte: 1x microSD Card Slot for data
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG: only to program eMMC
I/O28x GPIO, supports up to 5x UART, 5x I2C, 5x SPI, 2x PWM, 1x SDIO (4 Bit), M.2 B-Key 3042 (PCIe 1-lane Host, Gen 2 (5 Gbps))
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485 (Modbus capable)
CAN1x CAN 2.0B/FD
WLAN/Bluetooth®Optional 2.4 GHz/5.0 GHz IEEE 802.11b/g/n/ac wireless BT 5.0, BLE
Display/Touch
LCD interface1x DSI 2-lane (up to 1 Gbit/s per lane - Rpi-DSIO 22 pol.), 1x DSI 4-lane (up to 1 Gbit/s per lane - DSI1 40 pol. FFC), 1x HDMI 2.0 (up to 4Kp60 - HDMI0), 1x HDMI (HDMI - 40 pol. FFC)
Touch1x I2C, 1x USB
Camera interface1x CSI 2-lane (MIPI Rpi-CSI0 22 pol.)
Other
Power supply24 V DC ±20 %
Power consumption3.4 W ... 9.6 W
Temperature range0 °C…+55 °C, ambient, non condensing
Operating systemRaspbian Linux (not preinstalled)
Form factor105.5 x 69.6 mm
External RTC1x on Baseboard
RTC bufferingCR1220
Debug1x Console
Expansion plug1x M.2, Raspberry Pi GPIO Header 40-Pin
ApprovalsCE
*When using eMMC memory, booting from the SD-Card is not possible
BL Pi-Tron CM3+

BL Pi-Tron CM3+

Industrial Raspberry Pi

  • Broadcom BCM2837B0 4x Arm® Cortex-A53 @1.2 GHz
  • 3D Video Engine, 1 GB LPDDR2-RAM
  • Suitable for CODESYS® SoftPLC

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC Micro SD

Software

  • Raspbian Linux
  • Optional CODESYS® SoftPLC

Technical Data

FunctionStandard-Equipment
Microprocessor
CPUBroadcom BCM2837B0 4x Arm® Cortex®-A53 @1.2 GHz, 3D Video Engine
Memory
LPDDR2-RAM1 GB
eMMC*32 GB optional Lite / 8 GB (Lite ohne eMMC only with microSD card
SD-CardCompute Module CM3+ Lite, 1x microSD card slot for operating systems
FRAM2 kB (kbit)
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host
I/O28x GPIO, supports up to 2x UART, 2x I2C, 2x SPI, 2x PWM, 1x SDIO (4 Bit)
DIO4x DIO (24 V/up to 800 mA)
Serial1x RS232, 1x RS485* Not Modbus RTU compatible
CAN1x CAN 2.0B
Display/Touch
LCD interface1x DSI 2-lane (supports up to 1 Gbit/s per lane - RPI-DSI1), 1x Micro-HDMI 1.3a up to 1080p @30 fps
Touch1x I2C, 1x USB
Camera interface1x CSI 2-lane (up to 1 Gbit/s per lane - MIPI Rpi - CSI1)
Other
Power supply24 V DC ±20 %
Power consumption3.4 W…9.6 W (without peripherals)
Temperature range0 °C…+55 °C, ambient, non condensing
Operating systemRaspbian Linux (not preinstalled)
Form factor105.5 x 67 mm (4.3“)
External RTC1x on Baseboard
RTC bufferingCR1220
Debug1x Console
Expansion plugRaspberry Pi 40-Pin GPIO Header
*Versions with eMMC memory do not feature an microSD Card Slot
PiXtend® V2 -L- Pi 4

PiXtend® V2 -L- Pi 4

Powerful and industrially compatible

  • Raspberry Pi 4 B single-board computer
  • Retain memory 64 Bytes Flash EEPROM
  • Suitable for CODESYS® SoftPLC

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux
  • Optional CODESYS® V3 SoftPLC
  • C
  • Python

Technical Data

FunctionPIXTEND® V2-L-PI 4PIXTEND® V2-L-
CPUBroadcom BCM 2711, Raspberry Pi 4 Model BBroadcom BCM 2837B0, Raspberry Pi 3 Model B+
Hardware
Power Supply24 V DC ±20 %24 V DC ±20 %
Retain-/Remanence memory64 Bytes Flash EEPROM64 Bytes Flash EEPROM
Real Time Clock (RTC) With battery buffering With battery buffering
Temperature- and Air HumidityUp to 4 DHT11, DHT22, AM2302Up to 4 DHT11, DHT22, AM2302
CAN Bus1x **1x **
RS2321x *1x *
RS4851x *, Modbus RTU capable1x *, Modbus RTU capable
Digital inputs (DI)16x 3,3 / 5 / 12 / 24 V16x 3,3 / 5 / 12 / 24 V
Digital outputs (DO)12x PNP 5 / 12 / 24 V, 0,5 A12x PNP 5 / 12 / 24 V, 0,5 A
Analog voltage outputs (AI-U)4x 0...5 V, 0...10 V, 10 Bit4x 0...5 V, 0...10 V, 10 Bit
Analog current inputs (AI-I)2x 0...20 mA, 10 Bit 2x 0...20 mA, 10 Bit
Analog voltage outputs (AO)2x 0...10 V, 10 Bit2x 0...10 V, 10 Bit
Relais4x, max. 230 V / 6 A4x, max. 230 V / 6 A
PWM-/Servo outputs6x, 16 Bit resolution, 5 V6x, 16 Bit resolution, 5 V
GPIO4x 5 V GPIO4x 5 V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)Short circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Max. temperature range0 °C…+50 °C0 °C…+50 °C
Dimension without housing236.3 x 101.8 x 27 mm236.3 x 101.8 x 27 mm
Top hat rail housingAluminiumAluminium
Extension Board & Basic1 B+, 2 B, 3 B, 3 B+, 4 B1 B+, 2 B, 3 B, 3 B+, 4 B
*RS232 and RS485 cannot be operated simultaneously
**CAN interfaces and analog outputs cannot be used together

Software Downloads

PiXtend® -V2- Software Downloads
Name VersionDatumSoftwareReadmeInfo
SD Cards, CODESYS® setup & supporting files-.--.-Link-.--.-
C Library and Linux Tools (pxdev)0.5.82021-06-22RepoREADME.mdCHANGELOG.md
PiXtend® Python Library -V2-0.1.42021-06-01RepoREADME.mdCHANGELOG.md
FHEM Module1.3.02021-10-26RepoREADME.mdCHANGELOG.md
Node-RED0.1.32021-09-09RepoREADME.mdCHANGELOG.md
CODESYS® - PiXtend® -V2_ Target2.1.82021-06-24RepoREADME.mdCHANGELOG.md
PiXtend® V1.x legacy files-.--.-Link-.--.-
PiXtend® V2 -S- Pi 4

PiXtend® V2 -S- Pi 4

Fast, reliable and connection friendly

  • Raspberry Pi 4  single-board computer
  • Retain memory 32 Bytes Flash EEPROM
  • Suitable for CODESYS®  SoftPLC


Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux
  • Optional CODESYS® SoftPLC
  • C
  • Python

Technical Data

FunctionPIXTEND® V2-S-PI 4PIXTEND® V2-S-
CPUBroadcom BCM 2711, Raspberry Pi 4 Model BBroadcom BCM 2837B0, Raspberry Pi 3 Model B+
Hardware
Power Supply24 V DC ±20 %24 V DC ±20 %
Retain-/Remanence memory32 Bytes Flash EEPROM32 Bytes Flash EEPROM
Real Time Clock (RTC) With battery buffering With battery buffering
Temperature- and Air HumidityUp to 4 DHT11, DHT22, AM2302Up to 4 DHT11, DHT22, AM2302
RS2321x 1x
RS485per USB-Dongleper USB-Dongle
Digital inputs (DI)8x 3,3 / 5 / 12 / 24 V8x 3,3 / 5 / 12 / 24 V
Digital outputs (DO)4x PNP 5 / 12 / 24 V, 0.5 A4x PNP 5 / 12 / 24 V, 0.5 A
Analog voltage inputs (AI-U) 2x 0...5 V, 0...10 V, 10 Bit2x 0...5 V, 0...10 V, 10 Bit
Analog voltage outputs (AO)2x 0...10 V, 10 Bit 2x 0...10 V, 10 Bit
Relais4x, max. 230 V / 6 A4x, max. 230 V / 6 A
PWM-/Servo outputs2x 16 Bit, 2x 8 Bit resolution, 5 V2x 16 Bit, 2x 8 Bit resolution, 5 V
GPIO4x 5 V GPIO4x 5 V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)Short circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Max. temperature range0 °C…+50 °C0 °C…+50 °C
Dimension without housing166.3 x 101.8 x 27 mm166.3 x 101.8 x 27 mm
Top hat rail housingAluminiumAluminium
Supported RPI models1 B+, 2 B, 3 B, 3 B+, 4 B1 B+, 2 B, 3 B, 3 B+, 4 B

Software Downloads

PiXtend® -V2- Software Downloads
Name VersionDatumSoftwareReadmeInfo
SD Cards, CODESYS® setup & supporting files-.--.-Link-.--.-
C Library and Linux Tools (pxdev)0.5.82021-06-22RepoREADME.mdCHANGELOG.md
PiXtend® Python Library -V2-0.1.42021-06-01RepoREADME.mdCHANGELOG.md
FHEM Module1.3.02021-10-26RepoREADME.mdCHANGELOG.md
Node-RED0.1.32021-09-09RepoREADME.mdCHANGELOG.md
CODESYS® - PiXtend® -V2_ Target2.1.82021-06-24RepoREADME.mdCHANGELOG.md
PiXtend® V1.x legacy files-.--.-Link-.--.-
PiXtend® V2 -S-

PiXtend® V2 -S-

Fast, reliable and connection friendly

  • Raspberry Pi 3B+ single-board computer
  • Retain memory 32 Bytes Flash EEPROM
  • Suitable for CODESYS® SoftPLC

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux
  • Optional CODESYS® SoftSPS
  • C
  • Python

Technical Data

HardwarePiXtend® V2 -S-
Power supply24 V DC ±20 %
Retain-/Remanence memory32 Bytes Flash EEPROM
Real Time Clock (RTC)with battery buffering
Temperature- and Air Humidity Sensorsup to 4 DHT11, DHT22, AM2302
RS2321x
RS485via USB-Dongle
Digital inputs (DI)8x 3.3 / 5 / 12 / 24 V
Digital outputs (DO)4x PNP 5 / 12 / 24 V, 0.5 A
Analog voltage inputs (AI)2x 0…5 V, 0…10 V, 10 Bit
Analog voltage outputs (AO)2x 0…10 V, 10 Bit
Relais4x, max. 230 V / 6 A
PWM-/Servo outputs2x 16 Bit, 2x 8 Bit resolution, 5 V
GPIO4x 5 V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Maximum temperature range0 °C…+50 °C
Dimension - without housing166.3 x 101.8 x 27 mm
Top hat rail housingAluminium
Supported RPI models1 B+, 2 B, 3 B, 3 B+, 4 B (Extension Board & Basic)
Software
Short cycle times2.5 ms (400 Hz)
Support for:CODESYS® V3, C- and Phyton Library, FHEM, Node-RED

Software Downloads

PiXtend® -V2- Software Downloads
Name VersionDatumSoftwareReadmeInfo
SD Cards, CODESYS® setup & supporting files-.--.-Link-.--.-
C Library and Linux Tools (pxdev)0.5.82021-06-22RepoREADME.mdCHANGELOG.md
PiXtend® Python Library -V2-0.1.42021-06-01RepoREADME.mdCHANGELOG.md
FHEM Module1.3.02021-10-26RepoREADME.mdCHANGELOG.md
Node-RED0.1.32021-09-09RepoREADME.mdCHANGELOG.md
CODESYS® - PiXtend® -V2_ Target2.1.82021-06-24RepoREADME.mdCHANGELOG.md
PiXtend® V1.x legacy files-.--.-Link-.--.-
PiXtend® V2 - L-

PiXtend® V2 - L-

Fast, reliable and connection friendly

  • Raspberry Pi 3B+ single-board computer
  • Retain memory 64 Bytes Flash EEPROM
  • Suitable for CODESYS® SoftPLC

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux
  • Optional CODESYS® SoftSPS
  • C
  • Python

Technical Data

HardwarePiXtend® V2 -L-
Power supply24 V DC ±20 %
Retain-/Remanence memory64 Bytes Flash EEPROM
Real Time Clock (RTC)with battery buffering
Temerature-and Air Humidity Sensorsup to 4 DHT11, DHT22, AM2302
CAN Bus1x **
RS2321x *
RS4851x *, Modbus RTU capable
Digital inputs (DI)16x 3.3 / 5 / 12 / 24 V
Digital outputs (DO)12x PNP 5 / 12 / 24 V, 0.5A
Analog voltage inputs (AI-U)4x 0…5 V, 0…10 V, 10 Bit
Analog current inputs(AI-I)2x 0…20 mA, 10 Bit
Analog outputs (AO)2x 0…10 V, 10 Bit
Relais4x, max. 230 V / 6 A
PWM-/Servo outputs6x, 16 Bit resolution, 5 V
GPIO4x 5 V GPIO
Interfaces and I/OsShort circuit proof, supply with reverse polarity and overload protection (self-resetting safety device)
Maximum temperature range0°C…50°C
Dimension- without housing236.3 x 101.8 x 27 mm
Top hat rail housingAluminium
Supported RPI Models1 B+, 2 B, 3 B, 3 B+, 4 B (Extension Board & Basic)
Software
Short cycle times5 ms (200 Hz)
Support for:CODESYS® V3, C- and Phyton Library, FHEM, Node-RED
*RS232 and RS485 cannot be operated simultaneously
**CAN interfaces and anloge outputs (AO) cannot be used together

Software Downloads

PiXtend® -V2- Software Downloads
Name VersionDatumSoftwareReadmeInfo
SD Cards, CODESYS® setup & supporting files-.--.-Link-.--.-
C Library and Linux Tools (pxdev)0.5.82021-06-22RepoREADME.mdCHANGELOG.md
PiXtend® Python Library -V2-0.1.42021-06-01RepoREADME.mdCHANGELOG.md
FHEM Module1.3.02021-10-26RepoREADME.mdCHANGELOG.md
Node-RED0.1.32021-09-09RepoREADME.mdCHANGELOG.md
CODESYS® - PiXtend® -V2_ Target2.1.82021-06-24RepoREADME.mdCHANGELOG.md
PiXtend® V1.x legacy files-.--.-Link-.--.-
to top
