Avtomatizacija

Nudimo vam preizkušene rešitve

Rešitve na področju avtomatizacije in IoT so gonilna sila procesov, naprav in strojev. Glede na kompleksnost uporabe so na voljo najrazličnejše izvedbe procesorjev, različni vmesniki, razširitveni moduli in programske rešitve. Z robustno zasnovo so izdelki vsestransko uporabni, zlasti pa so primerni za uporabo v industrijskem okolju. Naš nabor storitev dopolnjujejo moderna in izredno zmogljiva orodja za razvoj CODESYS Soft-PLC. Podpirajo učinkovito in hitro implementacijo sofisticiranih rešitev avtomatizacije.





  • Prilagodljivi vmesniki

    Uporabljeni so naslednji običajni protokoli: CAN, CANOpen, EtherCAT, Modbus, ProfiNET, OPC US





  • CODESYS ready

    Odlična projektna podpora zaradi dolgoletnih izkušenj s programiranjem PLC.





  • Individualne rešitve

    Modularni sistemi omogočajo enostavno prilagajanje specifičnim potrebam strank.





  • Moč in učinkovitost

    Prilagodljivo z linijami procesorjev in spremenljivimi velikostmi pomnilnika.





  • Zahtevni pogoji

    Zanesljivi izdelki za neprekinjeno delovanje v industrijskem okolju.





  • Odlično timsko delo

    Krmiljenje, Panels in periferne naprave tesno sodelujejo na podlagi uveljavljenih standardov.





  • Kompaktna celostna rešitev

    Mogoča je enostavna razširitev prek multifunkcijskih modulov I/O-Module, izjemna vsestranskost.

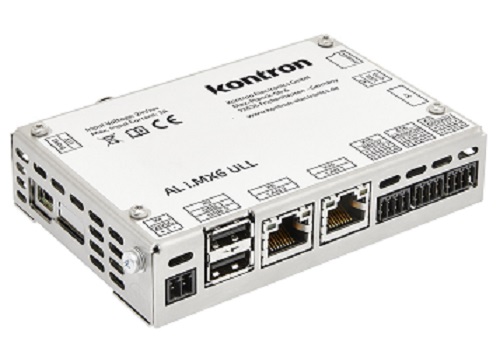

AL i.MX6 ULL

AL i.MX6 ULL

Robust DIN rail Linux computer

  • i.MX6 ULL 1x Arm® Cortex®-A7 @800 MHz
  • 512 MB DDR3-RAM
  • Stainless steel housing 111 x 25 x 76 mm, for mounting on 35 mm DIN rail

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)
  • Optional CODESYS SoftPLC

Technical Data

FunctionStandard Layout
Microprocessor
CPUi.MX6 ULL 1x Arm® Cortex®-A7 @800 MHz
Memory
DDR3-RAM512 MB
LPDDR2-RAM-
eMMC4 GB
SD-Card1x microSD Card Slot
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
DIO2x DIO (24 V/up to 800 mA)
AIO2x AIN (0...24 V)
Display-
Other
Power supply24 V DC ±20 %
Form factorStainless steel 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. EN 60715
Temperature range0 °C...+55 °C
Protection classIP20
Approvals
Software
BootloaderU-Boot
Operating systemEmbedded Linux (Yocto Distribution)
Product variants
Article numberAL i.MX6 ULL 512 MB/512 MB
AL i.MX6 ULL 512 MB/512 MB CODESYS + Webvisu
AL i.MX6 Dual

AL i.MX6 Dual

Robust DIN rail Linux computer

  • i.MX6 Dual 2x Arm® Cortex®-A9 @800 MHz
  • 2 GB DDR3-RAM
  • Stainless steel housing 111 x 25 x 76 mm, for mounting on 35 mm DIN rail

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)

Technical Data

FunctionStandard Layout
Microprocessor
CPUi.MX6 Dual 2x Arm® Cortex®-A9 @800 MHz
Memory
DDR3-RAM2 GB
LPDDR2-RAM-
eMMC4 GB
SD-Card1x microSD Card Slot
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
DIO4x DIO (24 V/up to 800 mA)
AIO-
Display1x HDMI
Other
Power supply24 V DC ±20 %
Form factorStainless steel housing 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. EN 60715
Temperature range0 °C...+55 °C
Protection classIP20
Approvals
Software
BootloaderU-Boot
Operating SystemEmbedded Linux (Yocto Distribution)
Product variants
Article numberAL i.MX6 Dual 2 GB/4 GB

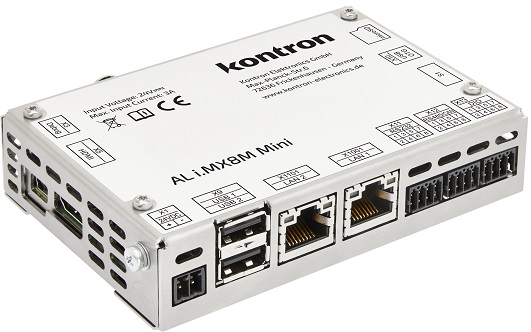

AL i.MX8M Mini

AL i.MX8M Mini

Robust DIN rail Linux computer

  • 4x Arm® Cortex® -A53 @1.6 GHz
  • 1x Arm® Cortex® -M4 @400 MHz
  • Stainless steel housing 111 x 25 x 76 mm, for mounting on 35 mm DIN Rail

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)

Technical Data

FunctionStandard-LayoutOptions
Microprocessor
CPUi.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHZ, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU
Memory
LPDDR4-RAM4 GB1 GB, 2 GB
NOR-Flash2 MB
eMMC32 GB4 GB up to 64 GB
SD-Card1x microSD Card Slot
nv Memory8 kB (64 kb) EERAM
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
DIO4x DIO (24 V/bis zu 800 mA)
Display
LCD interface1x HDMI, up to 1920 x 1080 @60 fps
Other
Power supply24 V DC ±20 %
Power consumptionLinux running <3 W
Form factorStainless steel 111 x 25 x 76 mm for mounting on 35mm DIN rail acc. EN 60715
Temperature range0° C…+55° C
Protection classIP20
ApprovalCE
Software
BootloaderU-Boot
Operating systemEmbedded Linux (Yocto Distribution)
RTC5ppm accuracy
RTC bufferingCR1220
Debug1x Console
Audio1x Buzzer
SecurityHAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG

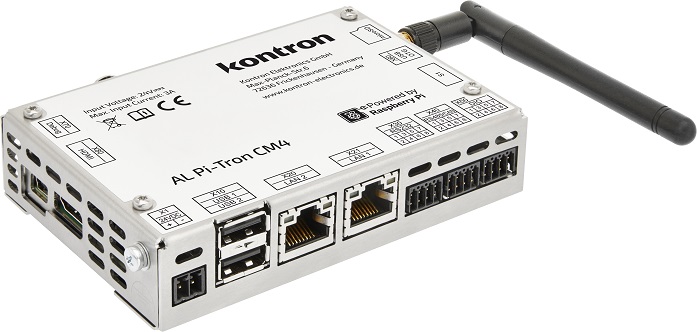

AL Pi-Tron CM4

AL Pi-Tron CM4

Raspbian Linux Hat-Rail Computer

  • Pi-Tron CM4, 4x Arm® Cortex® -A72 @155 GHz
  • Up to 8 GB LPDDR4-RAM
  • Stainless Steel housing 111 x 25 x 76 mm for mounting on 35 mm DIN rail

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux (not preinstalled)
  • Optional CODESYS SoftPLC

Technical Data

FunctionStandard-Equipment
Microprocessor
CPUPi-Tron CM4, Broadcom BCM2711, 4x Arm® Cortex®-A72 @1.5 GHz, H.265 (HEVC) up to 4Kp60 decode, H.264 up to 1080p decode, 1080p30 encode Open GL ES 3.0 grafic
Memory
LPDDR4-RAM1 GB/2 GB/4 GB/8 GB
eMMC*8 GB/16 GB/32 GB or SD-Card*
SD-CardCompute Modul CM4 Lite, 1x microSD Card Slot for operating system
FRAM32 kbit
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0 FD
DIO2x DIO (24 V/bis zu 800 mA)
WLAN/BluetoothOptional
Display/Touch
LCD interface1x 2-lane DSI Display Interface (up to 1 Gbit/s per lane, DSI 1, 1x HDMI 2.0 (up to 4Kp60 are supported)
Touch1x I2C, 1x USB
Camera interface1x 2-lane MIPI CSI Camera Interface
Other
Power supply24 V DC ±20 %
Temperature rangeTBD
Form factorStainless steel housing 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. to EN 60715
Temperature range0 °C...+55 °C
Protection classIP20
ApprovalsCE
Software
Operating systemRaspbian Linux (not preinstalled)
*When using eMMC memory, booting from SD-Card is not possible
AL Pi-Tron CM3+

AL Pi-Tron CM3+

Robust DIN rail Linux computer

  • Pi-Tron CM3+ 4x Arm® Cortex®-A53 @1.2 GHz
  • 1 GB LPDDR2-RAM
  • Stainless steel housing 111 x 25 x 76 mm, for mounting on 35 mm DIN rail

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Raspbian Linux (not preinstalled)
  • Optional CODESYS SoftPLC

Technical Data

FunctionStandard Layout
Microprocessor
CPUPi-Tron CM3+ 4x Arm® Cortex®-A53 @1.2 GHz
Memory
DDR3-RAM-
LPDDR2-RAM1 GB
eMMC8 GB, 32GB or SD-Card*
SD-Card1x microSD Card Slot or eMMC*
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
DIO4x DIO (24 V/up to 800 mA)
AIO-
Display1x micro HDMI
Other
Power supply24 V DC ±20 %
Form factorStainless steel housing 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. EN 60715
Temperature range0 °C...+55 °C
Protection classIP20
ApprovalsFCC and UL61010, CB report
Software
Bootloader-
Operating systemRaspbian Linux
Product variants
Article numberAL Pi-Tron CM3+ lite 1 GB/microSD Card Slot
AL Pi-Tron CM3+ 1 GB/8 GB eMMC
AL Pi-Tron CM3+ 1 GB/32 GB eMMC
*Versions with eMMC memory do not feature an microSD Card Slot

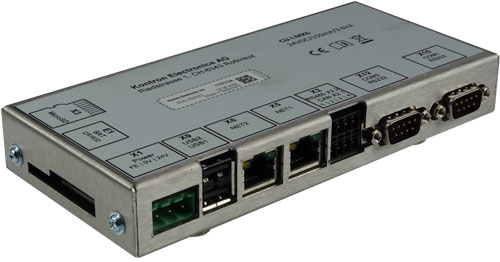

CU Control Unit

CU Control Unit

Robust DIN rail CODESYS computer

  • Arm® i.MX6 2 Cores, 800 MHz (CU 3x)
  • Intel Atom® E3800, 2 Cores 1.33 GHz, 4 Cores 1.91 GHz (CU 5x)
  • CODESYS ready

Request a quote

Accessories

  • No accessories

Software

  • Embedded Linux (Yocto Distribution)
  • Embedded Linux (Debian Distribution) für Intel Atom®
  • Optional CODESYS SoftPLC

Technical Data

FunctionStandard Layout
Processor
CPUNXP Arm® i.MX6 2 Cores, 800 MHz
Memory
DRAM DDR3L1 GByte soldered
NAND/NOR-Flash512 MByte/1 MByte
SRAM128 kByte
SD-CardmicroSD Card Slot (up to 32 GByte)
Interfaces
USB2x USB 2.0 (Host)
Ethernet2x Ethernet (10/100) independent
CAN1x CAN (isol.)
Serial Pors2x RS232, 1x RS485 (isol.)
Real time clock
RTCRTC buffered battery
Mechanical
ConstructionIP20, stainless steel
CoolingFanless
Dimension (HxWxD)174 x 78 x 26 mm
Weight0.40 kg
MountingFor mounting on 35 mm DIN rail acc. EN 60715
Environment
Power supply24 V DC ±20 %
Power consumptionTyp. 3.6 W
EMVEN 61000-2-2 (immunity), EN 61000-6-4 (emission)
Shock (EN 60068-2-27)N. a.
Vibration (EN 60068-2-6)N.a.
Operating temperature0 °C … +55 °C
Storage temperature-20 °C … +70 °C
Humidity10 %-90 % @39 °C, non-condensing
AltitudeUp to 6.500 ft (2000 m)
Software
Operating systemEmbedded Linux (Yocto)
SoftPLC (Option)CODESYS V3, Target Visu, Web Visu
Protocols (Option)EtherCAT, Modbus TCP/RTU, Profinet, Ethernet IP, CANopen, OPC UA, IIoT Libraries (MQTT, HTTPS; Azure, AWS, Google..)
Approvals
CerificationCE

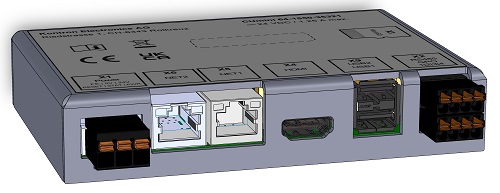

CU Control Unit Mini 5x

CU Control Unit Mini 5x

Robust CODESYS computer with DIN rail expansion options

  • Intel Atom® E3800, 2 Cores 1.33 GHz, 4 Core 1.91 GHz (CU Mini 5x)
  • Expansion interface for specific requirements
  • CODESYS ready

Request a quote

Accessories

  • No accessories

Software

  • Embedded Linux (Yocto Distribution)
  • Embedded Linux (Debian Distribution) für Intel Atom®
  • Optional CODESYS SoftPLC

Technical Data

FunctionStandard Layout
Processor
CPUIntel Atom® E3800 2-4 Cores™ 2 Core™ 1.33 GHz /4 Core™ 1.91 GHz
Memory
DRAM DDR3L2/4 GByte, SO-DIMM slot
eMMC16/32 GByte
SRAM/FRAM-/128 kByte
SD-CardmicroSD Card Slot (up to SDXC-format)
Interfaces
USB2x USB 2.0 (Host)
Ethernet2X Ethernet (10/100/1000) independent
HDMI1x HDMI Type C
CAN-
Serial Ports-
Other
ControlPower button, programmable status LED
WatchdogExternal Watchdog, programmable
RTCBattery buffered RTC
BIOSUEFI BIOS
Mechanical
ConstructionIP20, stainless steel
CoolingFanless
Dimensions (HxWxD)185.6 x 92 x 38.2 mm (without connectors and rail clamp)
Weight0.39 kg
MountingFor mounting on 35 mm DIN rail acc. EN 60715
Environment
Power supply24 V DC ±20 %
Power consumptionTyp 3.6 W to 30 W (depending on processor load and interface activity)
EMVEN 61000-2-2 (immunity), EN 61000-6-4 (emission)
Shock (EN 60068-2-27)N.a.
Vibration (EN 60068-2-6)N.a.
Operating Temperature0 °C … +55 °C
Storage Temperature-20 °C … +70 °C
Humidity10 %-90 % @39 °C, non-condensing
AltitudeUp to 9.800 ft (3000 m)
Software
Operating systemLinux Debian, Microsoft Windows 10 IoT Enterprise
SoftPLC (Option)CODESYS V3, Target Visu, Web Visu
Feldbus protocols (Options)EtherCAT, Modbus TCP, Profinet, Ethernet IP, OPC UA, IIoT Libraries (MQTT, HTTPS; Azure, AWS, Google..)
Approval
CertificationsCE, UL 61010-1 & UL 61010-2-201
